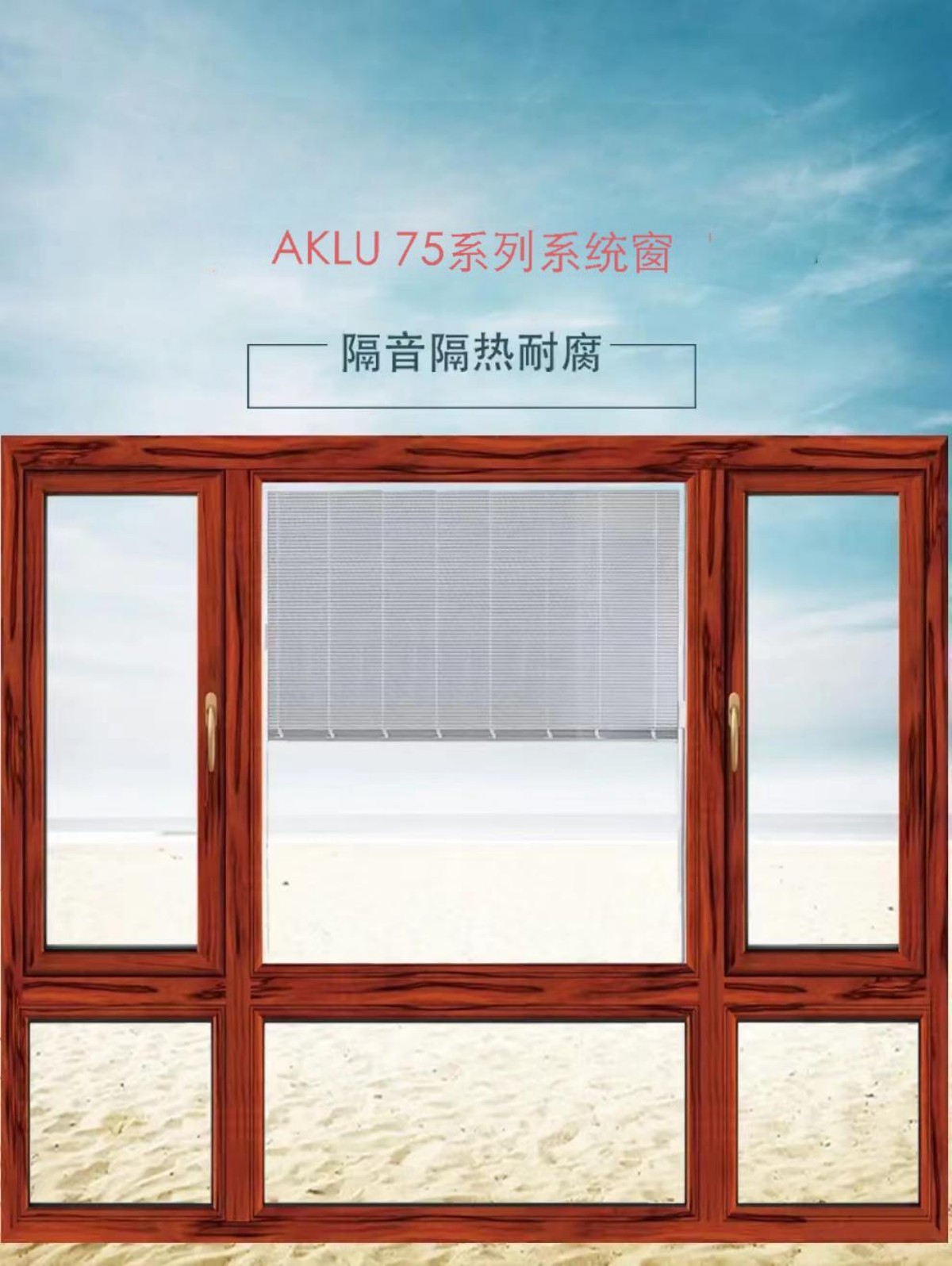

AKLU 75 series energy-saving single system window

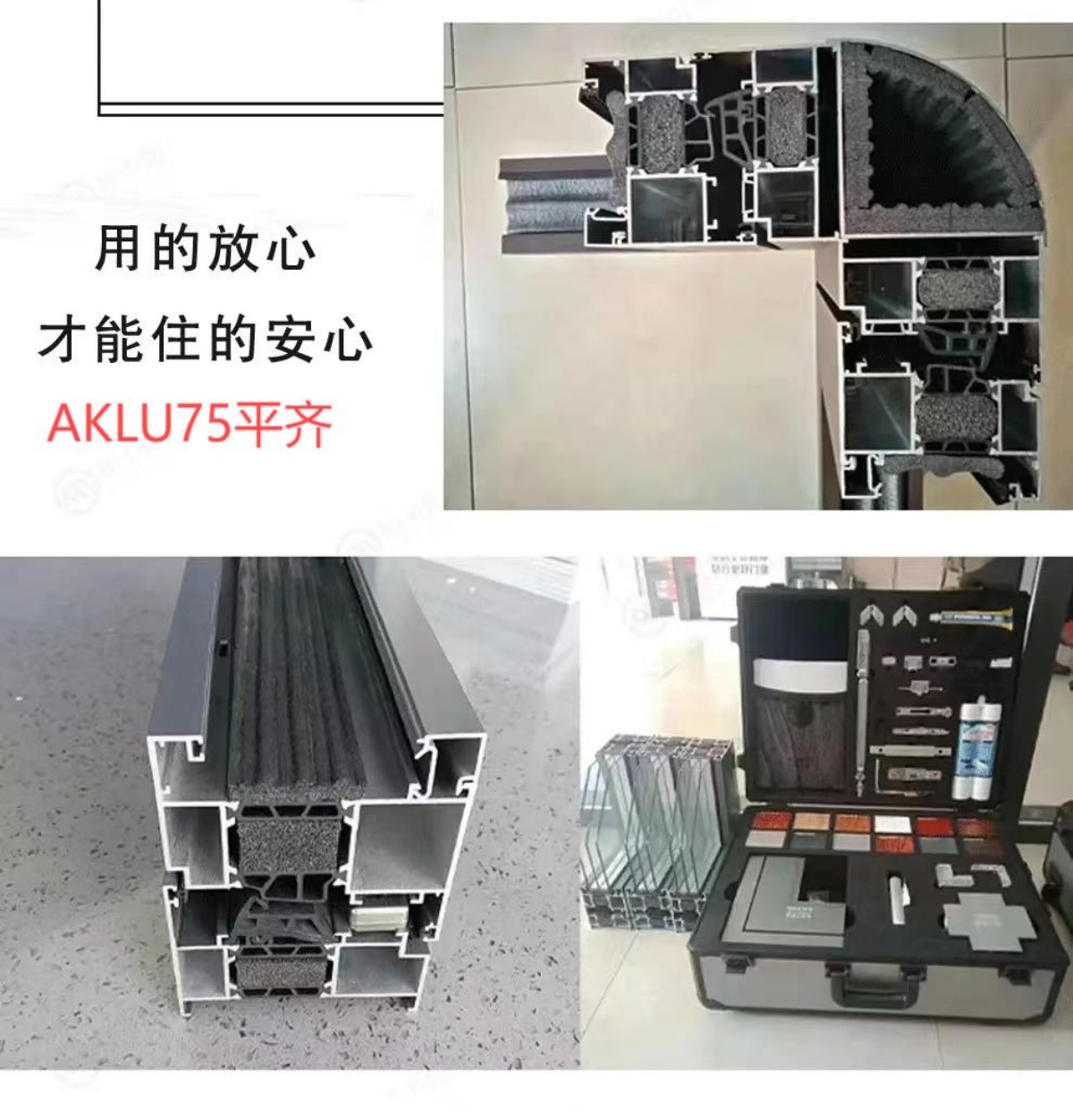

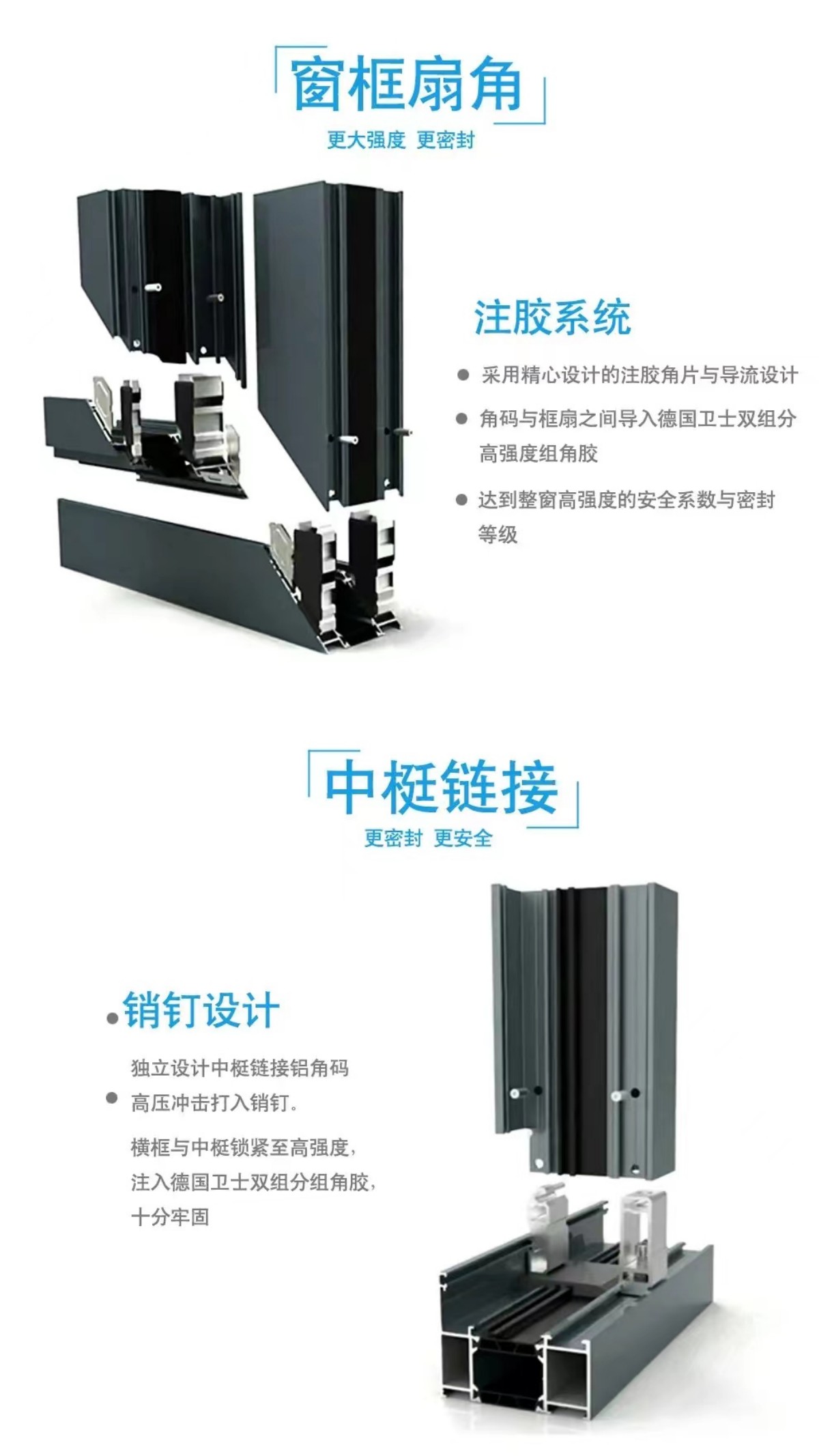

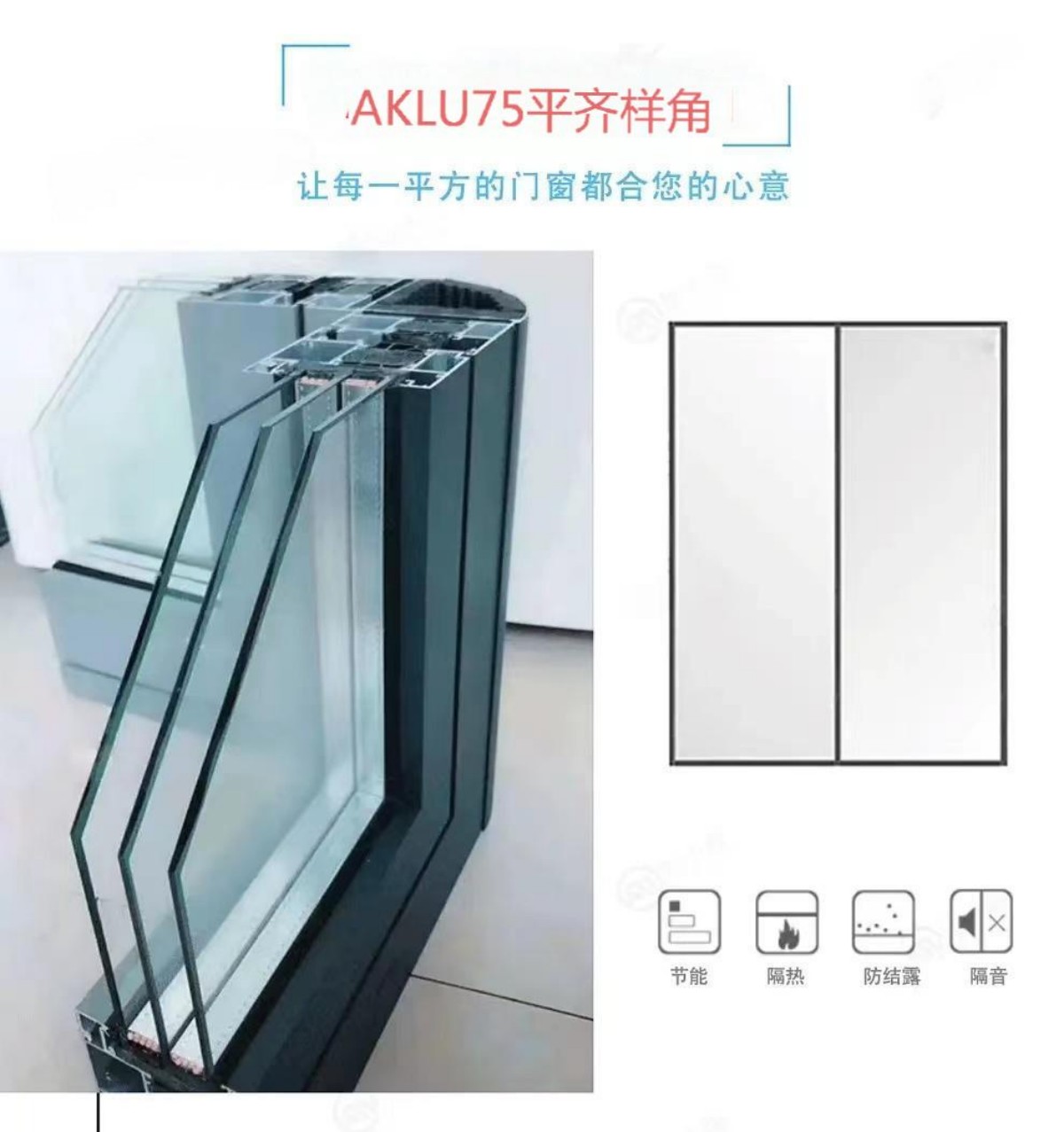

  AKLU 75 series This series is an energy-saving single window, without diamond mesh, with a flush design inside and outside to enhance the aesthetic vision. It adopts the pin injection process, and the middle support connection adopts the connector injection process; it enhances the waterproof, airtight, heat insulation and sound insulation performance. It adopts the invisible drainage groove design to enhance the streamlined visual sense of the window; optional light strip decoration; non-invisible drainage groove and floor drain drainage process are also optional. Standard configuration: dust strip, steel sheet, anti-sinking block.

Basic configuration parameters :

Frame size : 75mm × 60mm × 36mm

Center size : 75mm × 83mm × 36mm

Inner opening size: 75mm × 48 mm × 47mm

Profile wall thickness : 1.4mm, 1.8mm

Outward opening size: 75mm × 75mm × 33mm

Glass notch : 36.2mm-38mm

Glass specifications: 5+12A+5+12A+5mm, 6mm+9A+6+9A+6

Insulation strip material: PA66 nylon strip

Thermal insulation strip width: 26mm , can be equipped with multiple cavities

Sealing strip material: EPDM rubber strip

Hardware configuration: Standard AKLU European standard notch

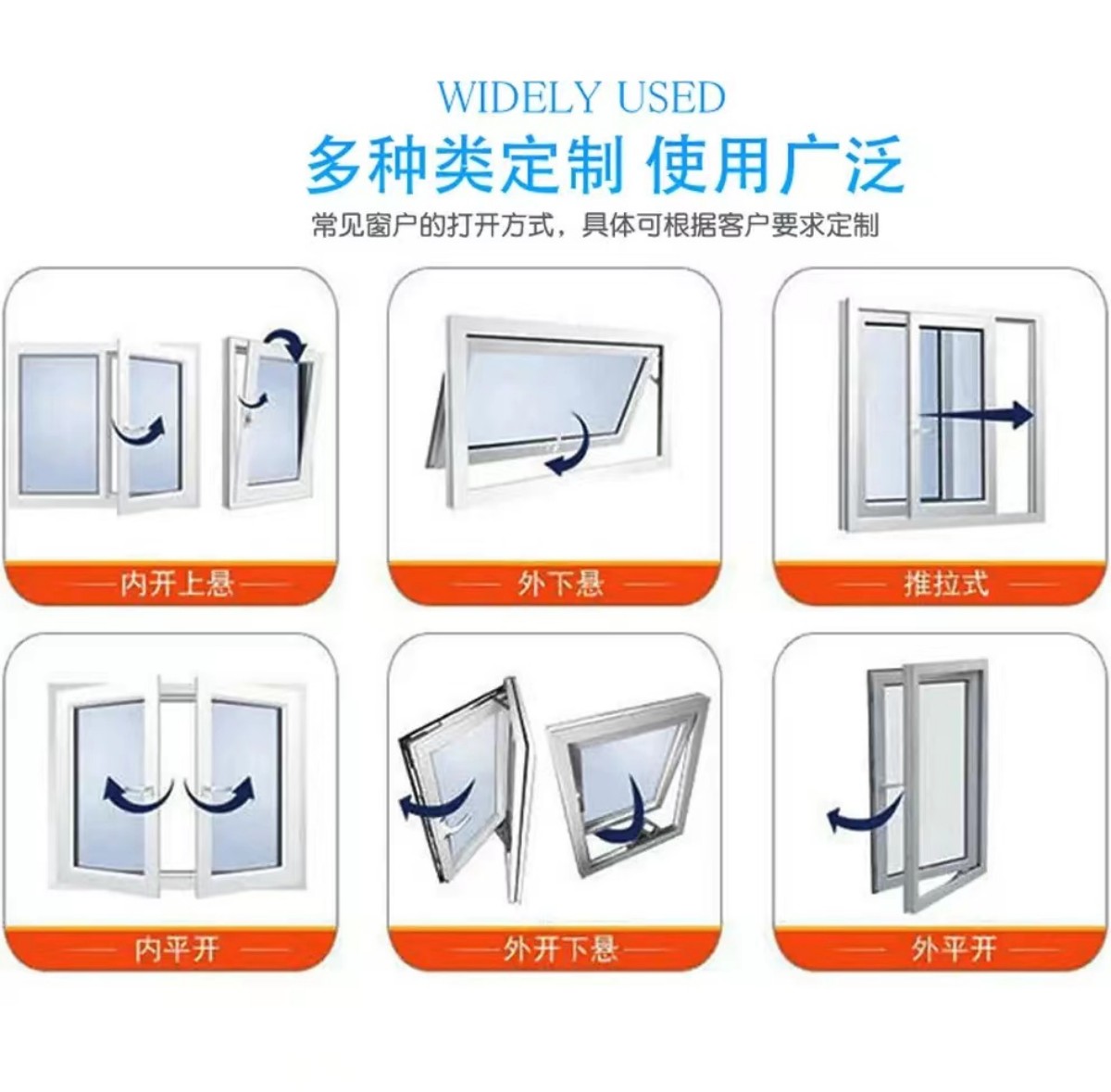

Opening method: Inward opening, outward opening, inward opening and tilting, outward opening and hanging

Product performance parameters:

Air tightness: National standard GB/T 31433-2015, test result is level 7

Water tightness: National standard GB/T 31433-2015, test result is level 6

Wind pressure resistance: National standard GB/T 31433-2015, test result is level 7

Thermal insulation: National standard GB/T 31433-2015, test result is level 7

Sound insulation: National standard GB/T 8485-2008, test result is level 4 ≤ 40db
