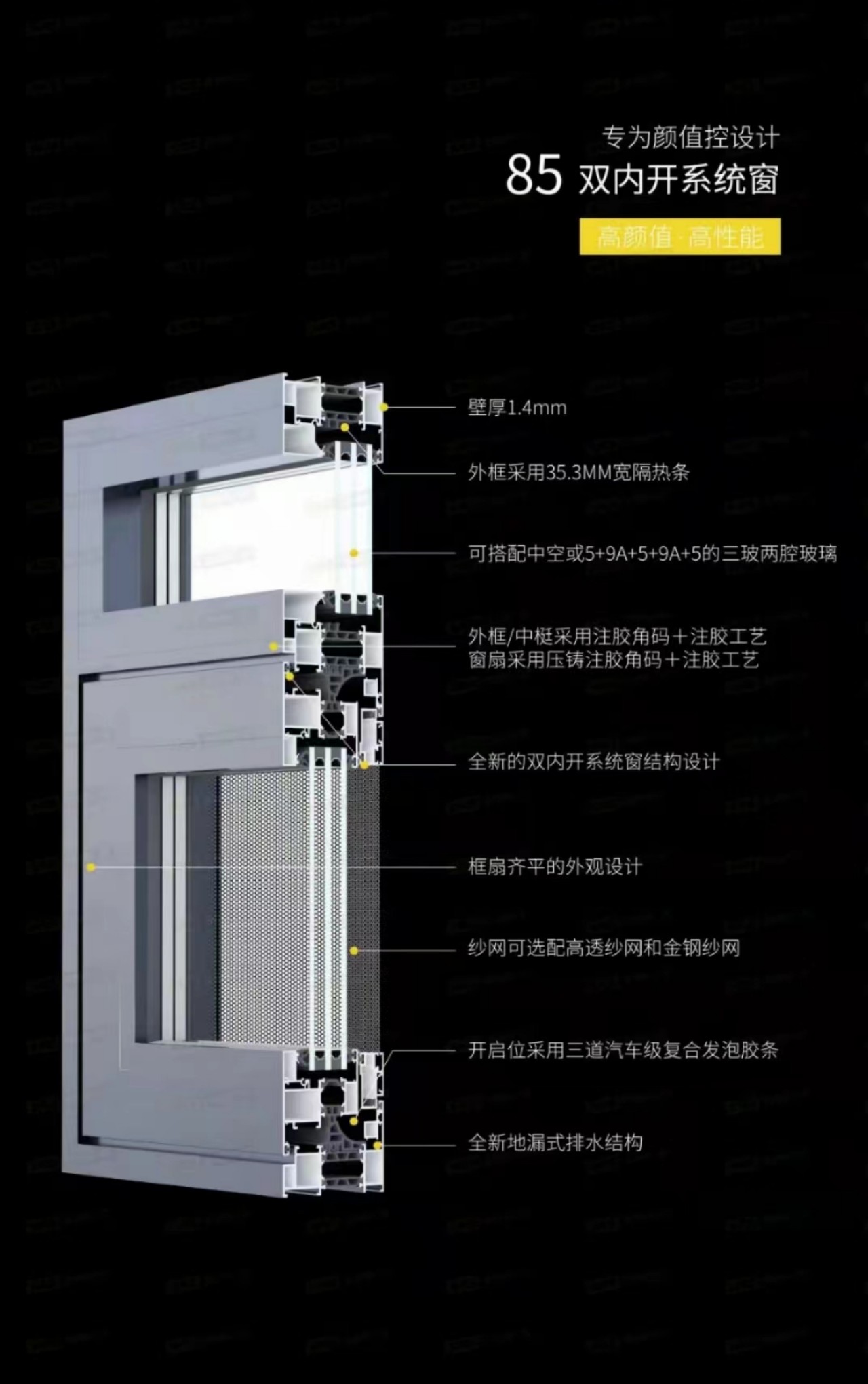

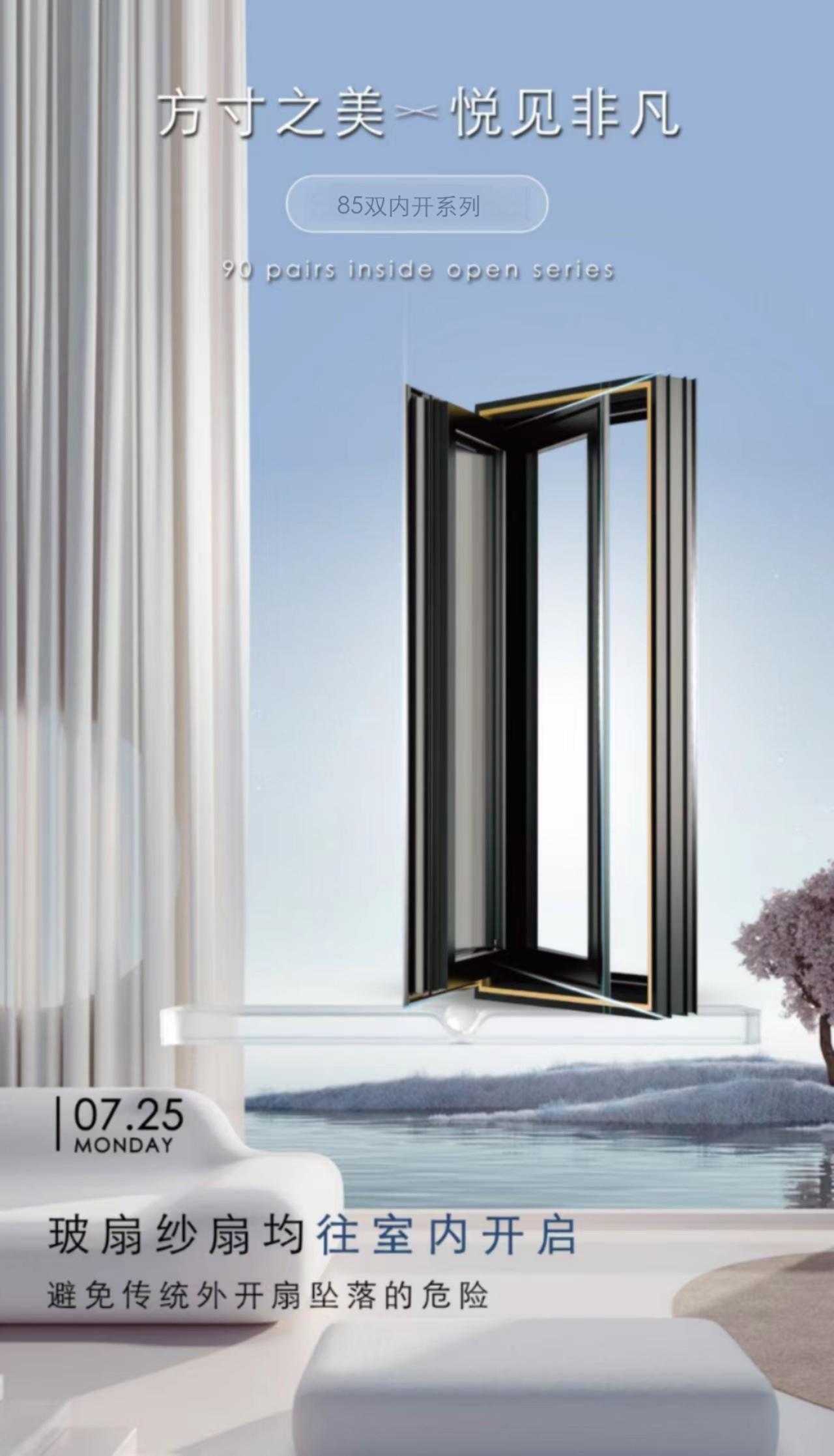

AKLU85 series system doors and windows configuration table

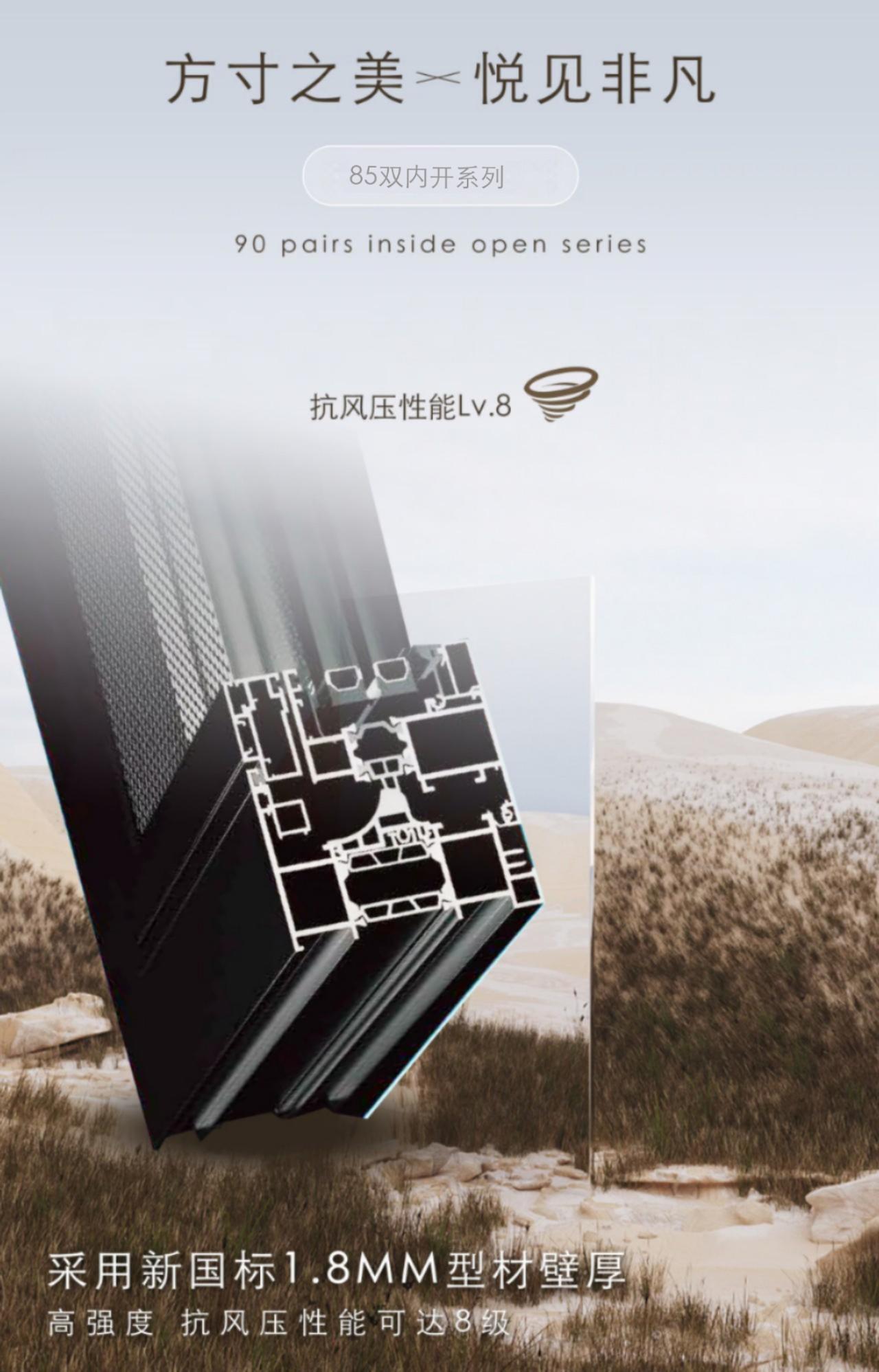

Product parameters: Profile wall thickness: 1.6mm, 1.8mm

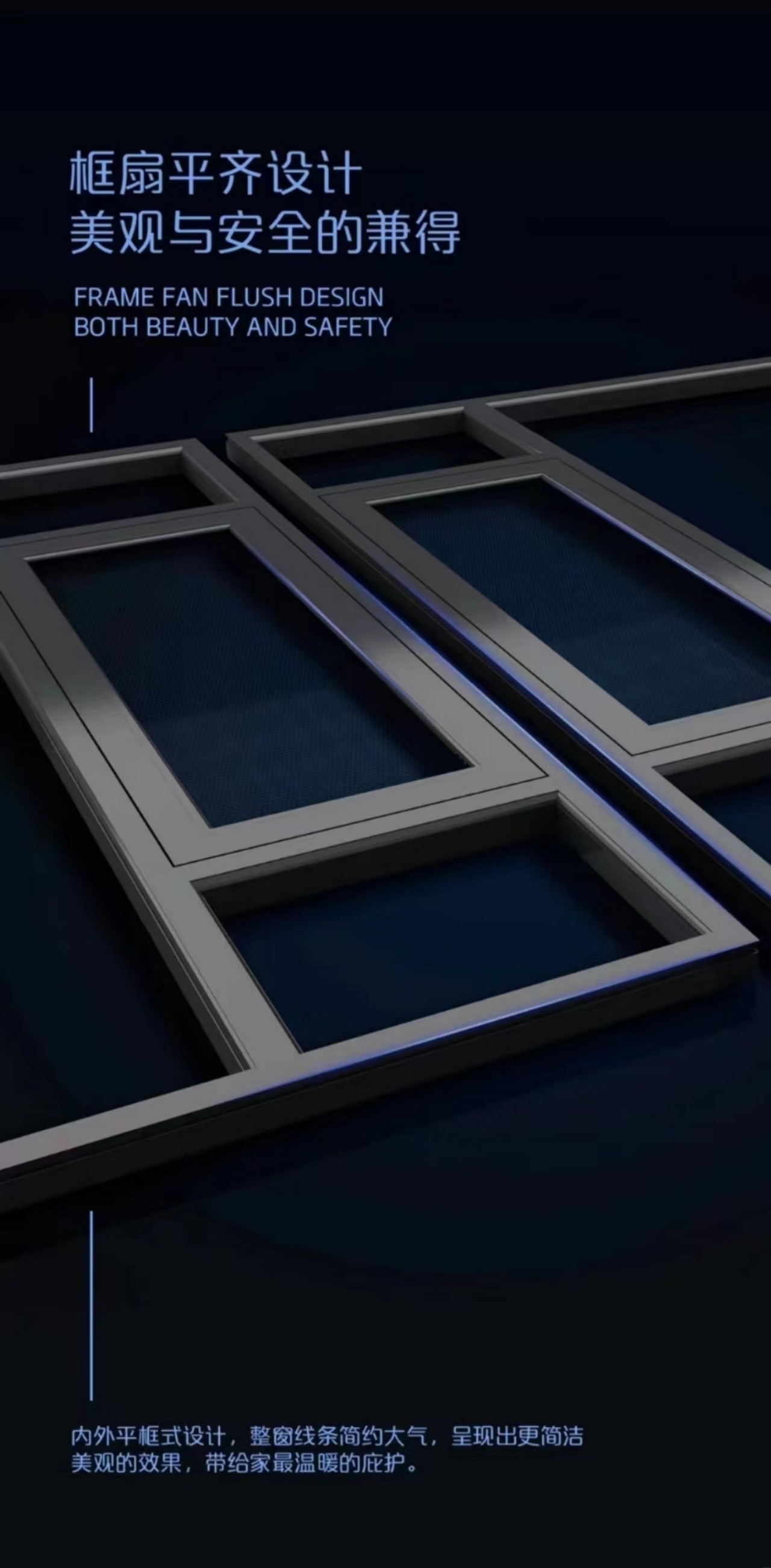

Indoor and outdoor frame and sash visibility: Flush inside and outside, isothermal flush

Drainage trough design: direct drainage, hidden drainage

Visible surface of frame: 30mm, 40mm

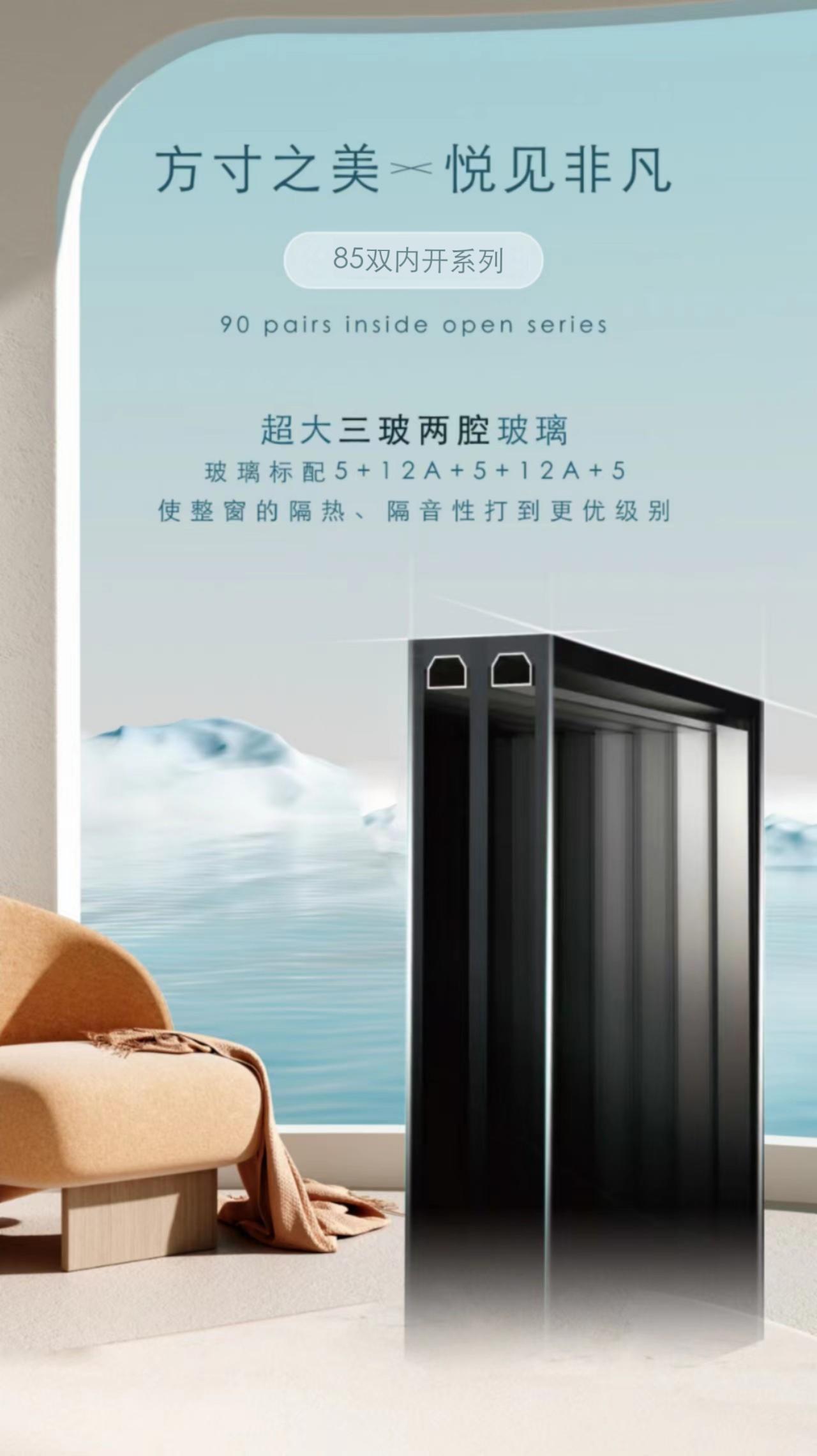

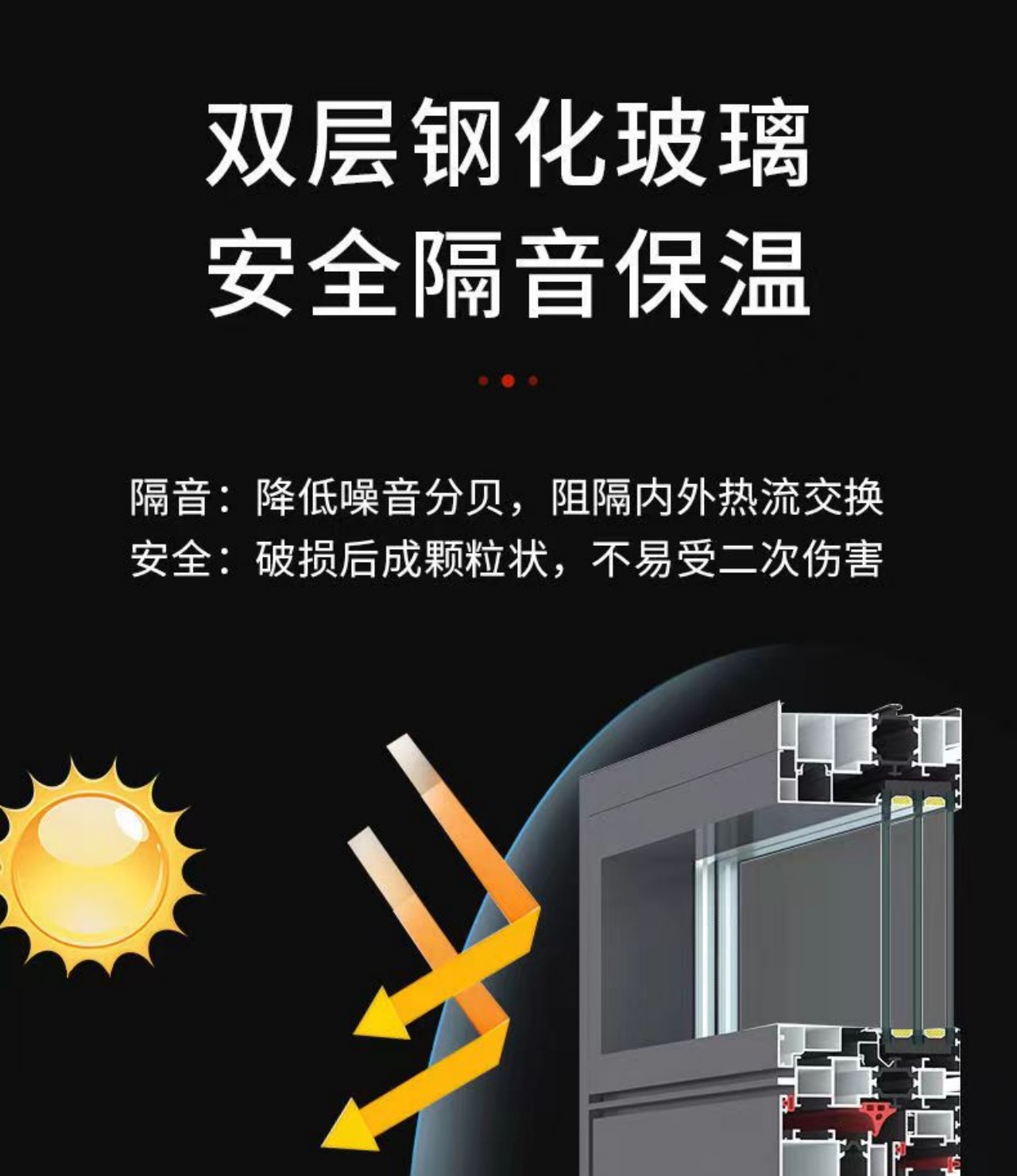

Glass configuration: three-glass two-chamber glass slot width 43mm
Hardware configuration: AKLU European standard hardware

Aluminum brand selection: Nanshan AKLU aluminum

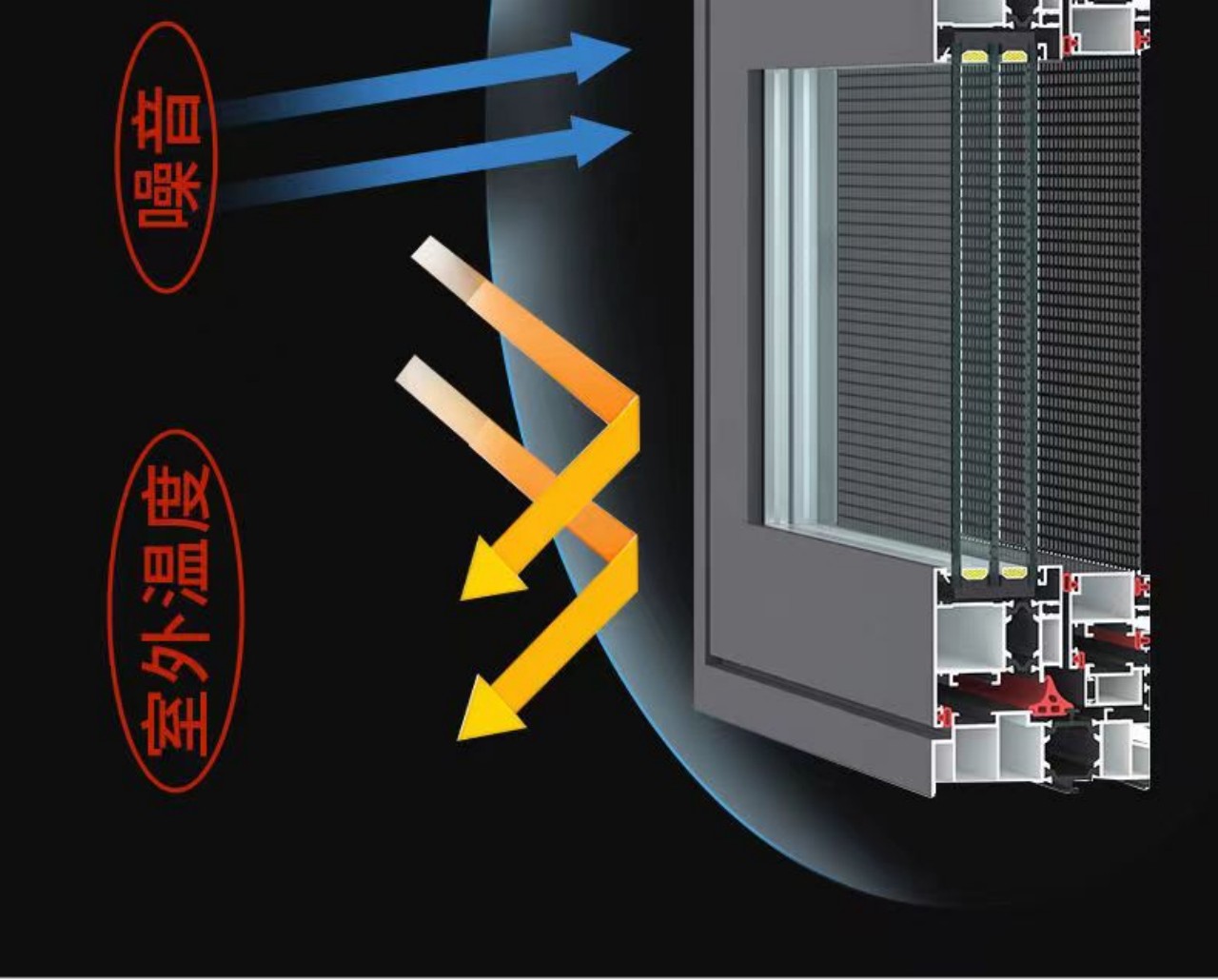

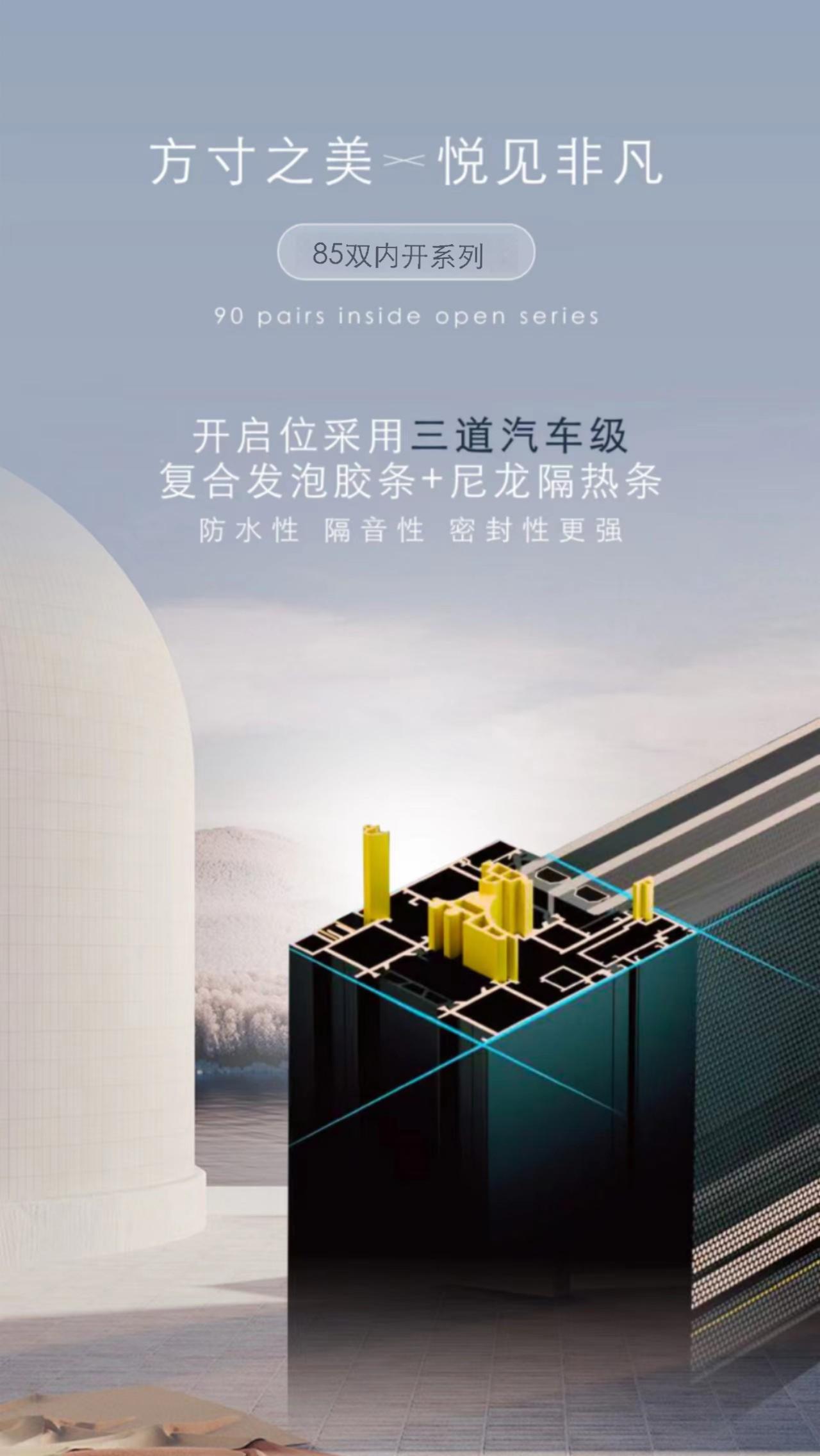

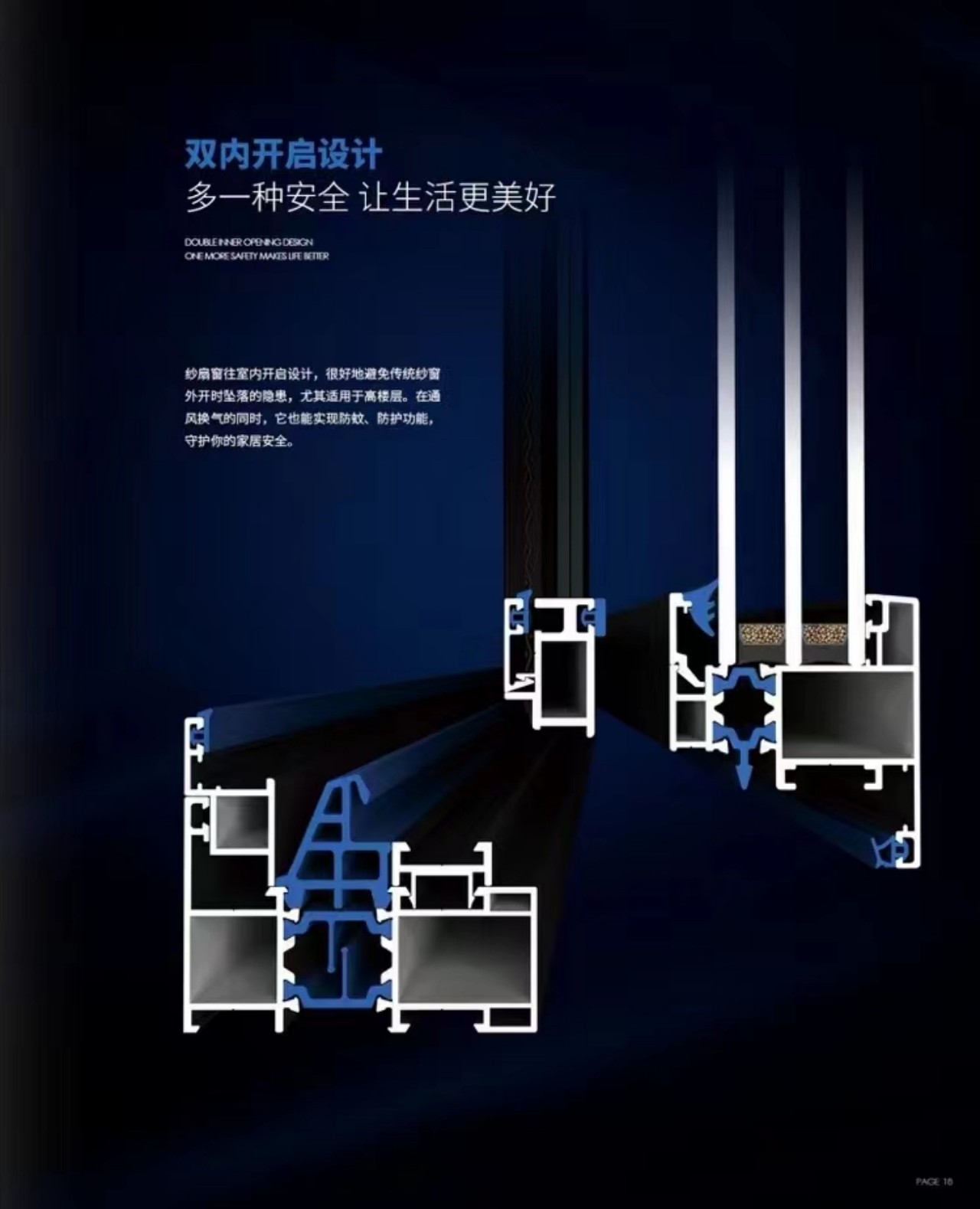

multi-cavity insulation strip: Nylon PA66 has high connection strength, aging resistance, good thermal insulation performance, and good weather resistance, which makes the door and window products show excellent thermal insulation performance. The insulation strip adopts multi-cavity thermal insulation and sound insulation technology: improve the performance of the whole window, and its high elasticity can effectively increase the tightness of the frame and sash. High thermal insulation | high airtightness | high sound insulation

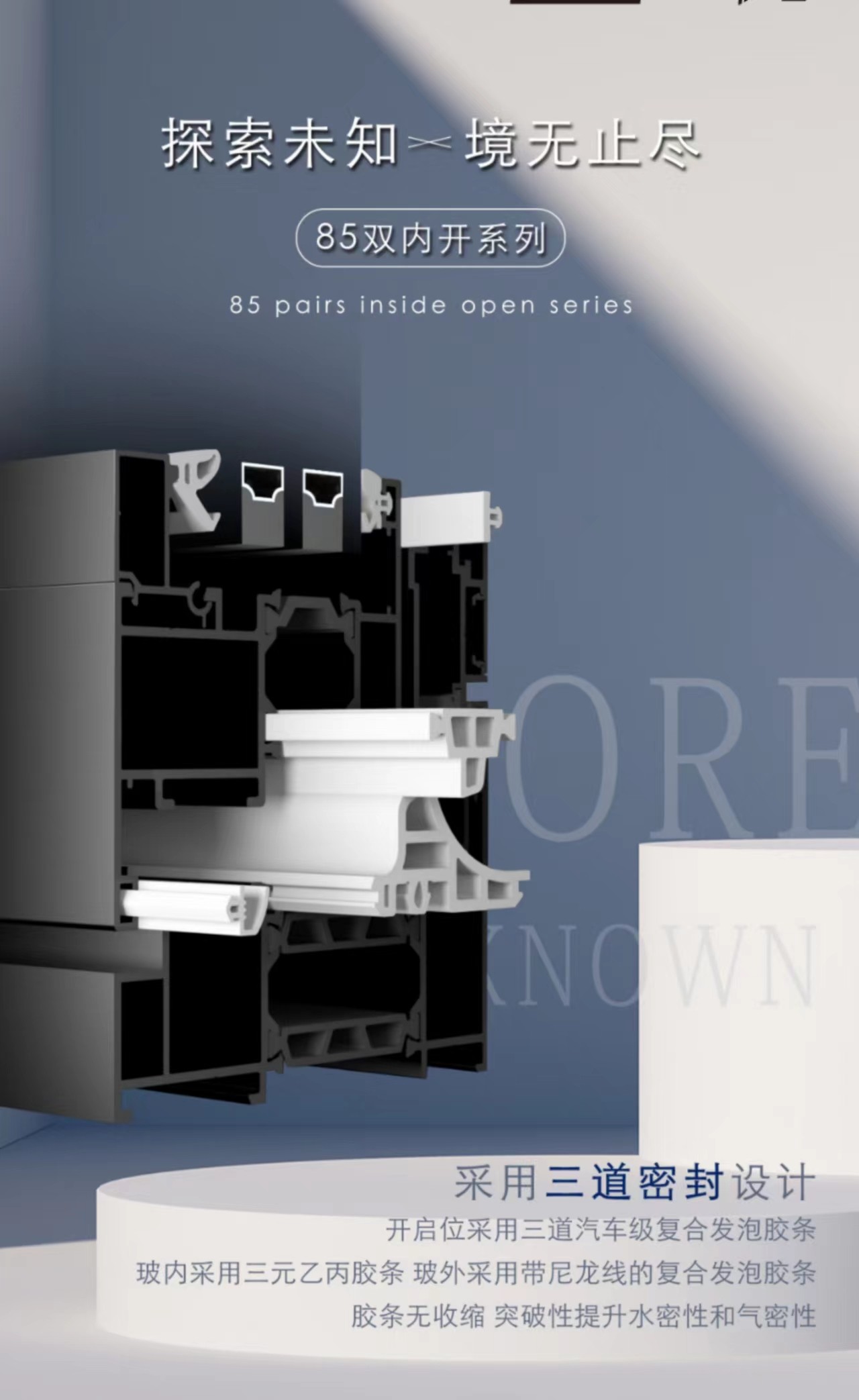

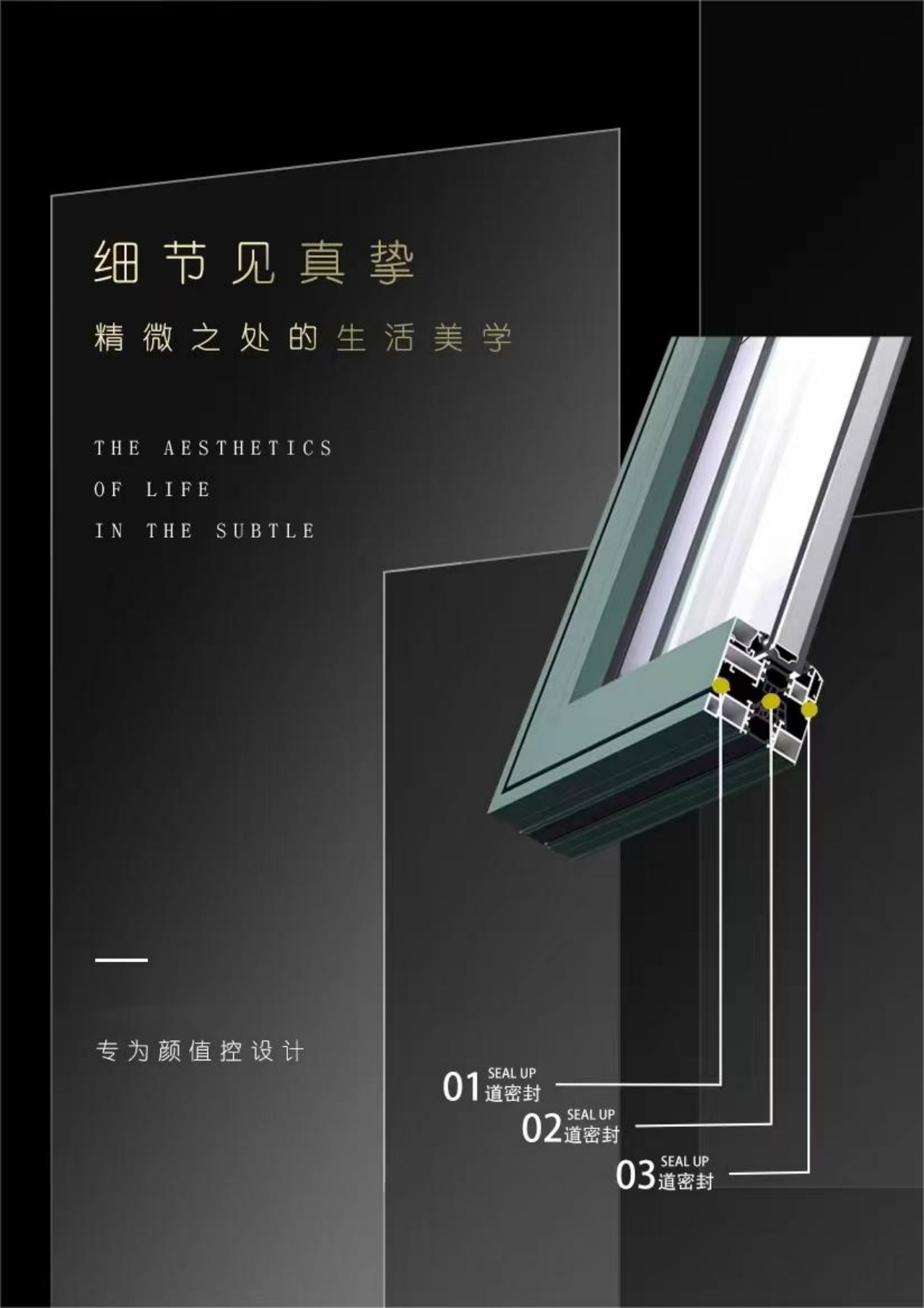

expansion injection design: the gap between the corner code and the profile cavity is completely closed, effectively ensuring the ultra-high airtightness of the doors and windows. Completely closed | strong airtightness | increase strength.

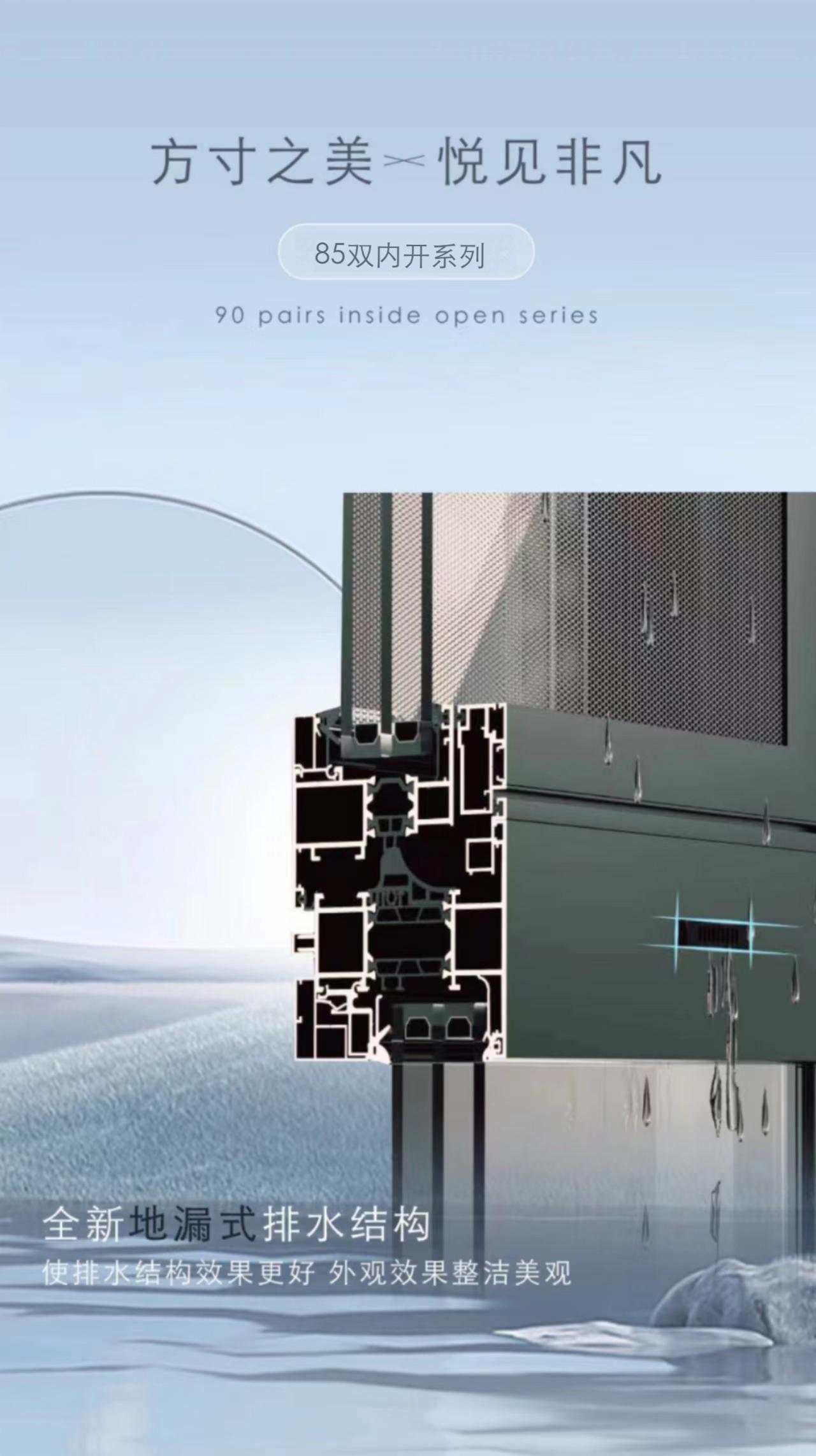

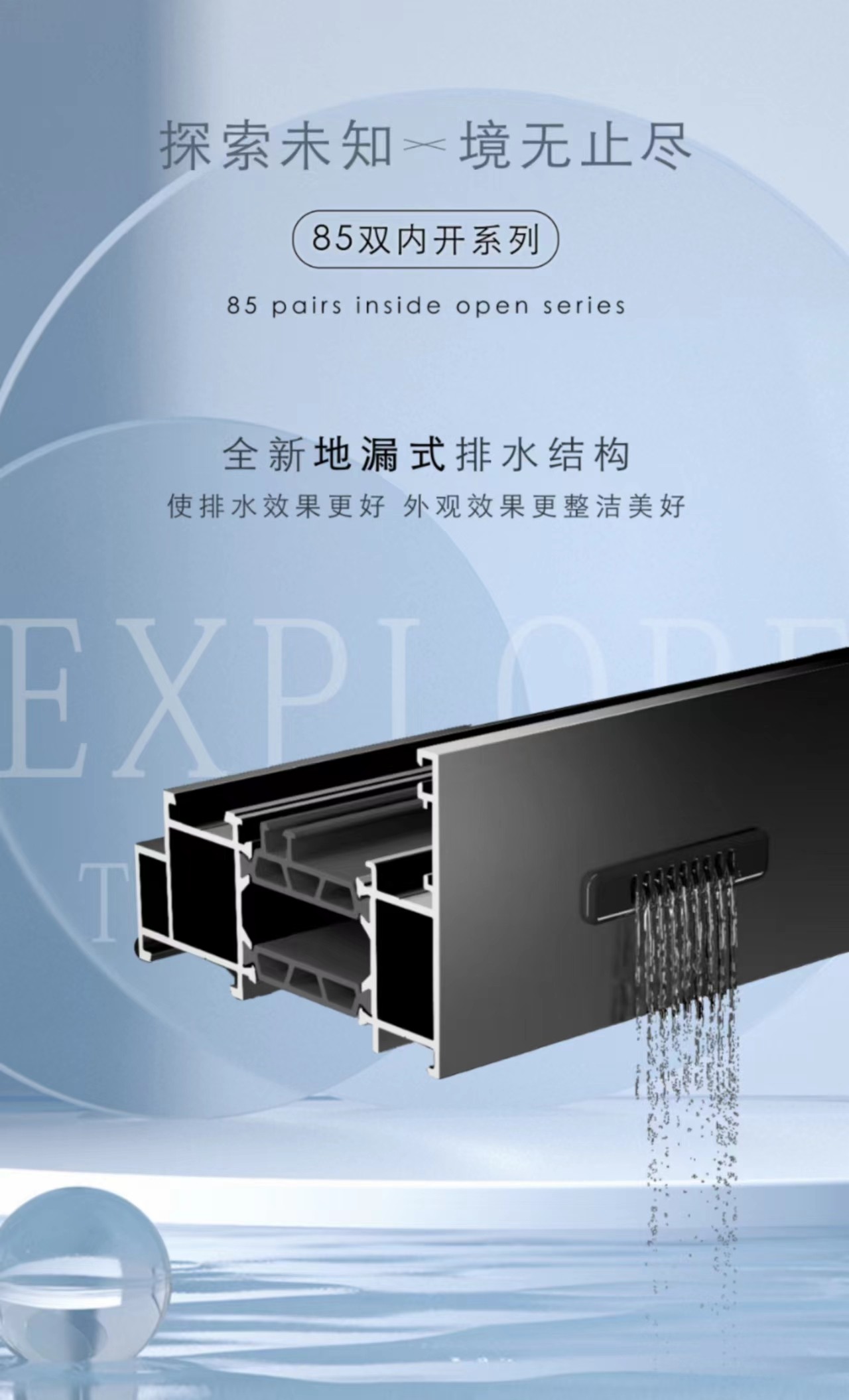

Straight-type, invisible drainage groove design: show excellent drainage power. Invisible drainage | large drainage volume | high aesthetics
According to the national standards for aluminum alloy doors and windows: watertightness is level 5, airtightness is level 8, wind pressure performance is level 8, sound insulation performance is level 4, and thermal insulation performance is level 8 .
