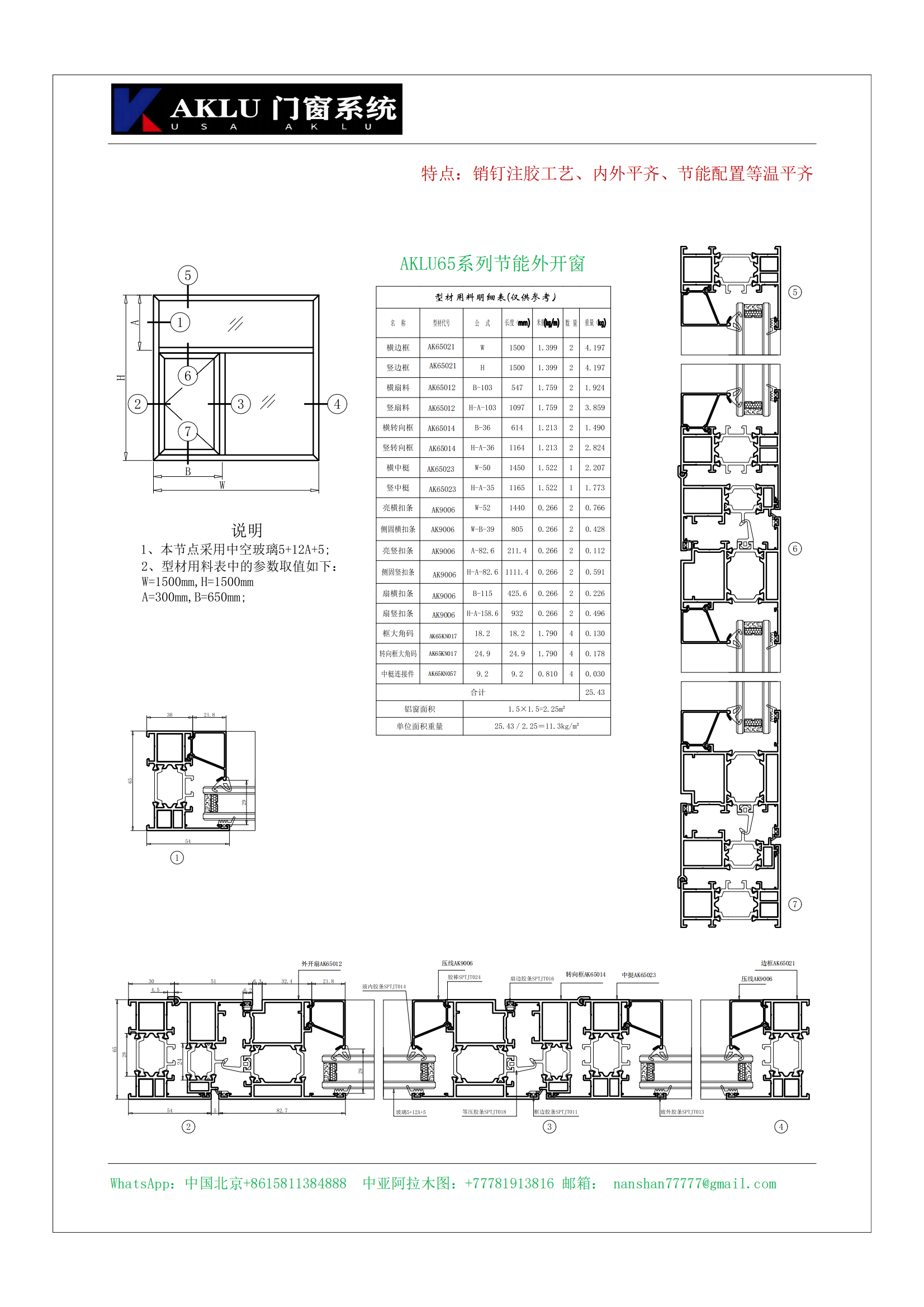

AKLU 65 series energy-saving single system window

  AKLU 65 series is an energy-saving single window, without diamond mesh, isothermal flush heat insulation, pin injection technology, and connector injection technology for center support connection; enhanced waterproof, airtight, heat insulation, and sound insulation performance. The internal and external flush design enhances visual beauty.

Basic configuration parameters :

Frame size : 65mm × 55mm × 30mm

Center frame size : 65mm × 72mm × 30mm

Inward opening size: No inward opening design

Profile wall thickness : 1.4mm, 1.8mm

External opening size: 83mm × 65mm × 39mm

Glass notch : 28mm

Glass specifications: 5mm+16A+5mm, 5mm+12A+5mm optional

Insulation strip material: PA66 nylon strip

Thermal insulation strip width: 28mm , can be equipped with multiple cavities

Sealing strip material: EPDM rubber strip

Hardware configuration: Standard AKLU European standard notch

Opening method: external opening, external opening and external hanging

Product performance parameters:

Air tightness: National standard GB/T 31433-2015, test result is level 8

Water tightness: National standard GB/T 31433-2015, test result is level 6

Wind pressure resistance: National standard GB/T 31433-2015, test result is level 5

Thermal insulation: National standard GB/T 31433-2015, test result is level 8

Sound insulation: National standard GB/T 8485-2008, test result is level 4 ≤ 30db
