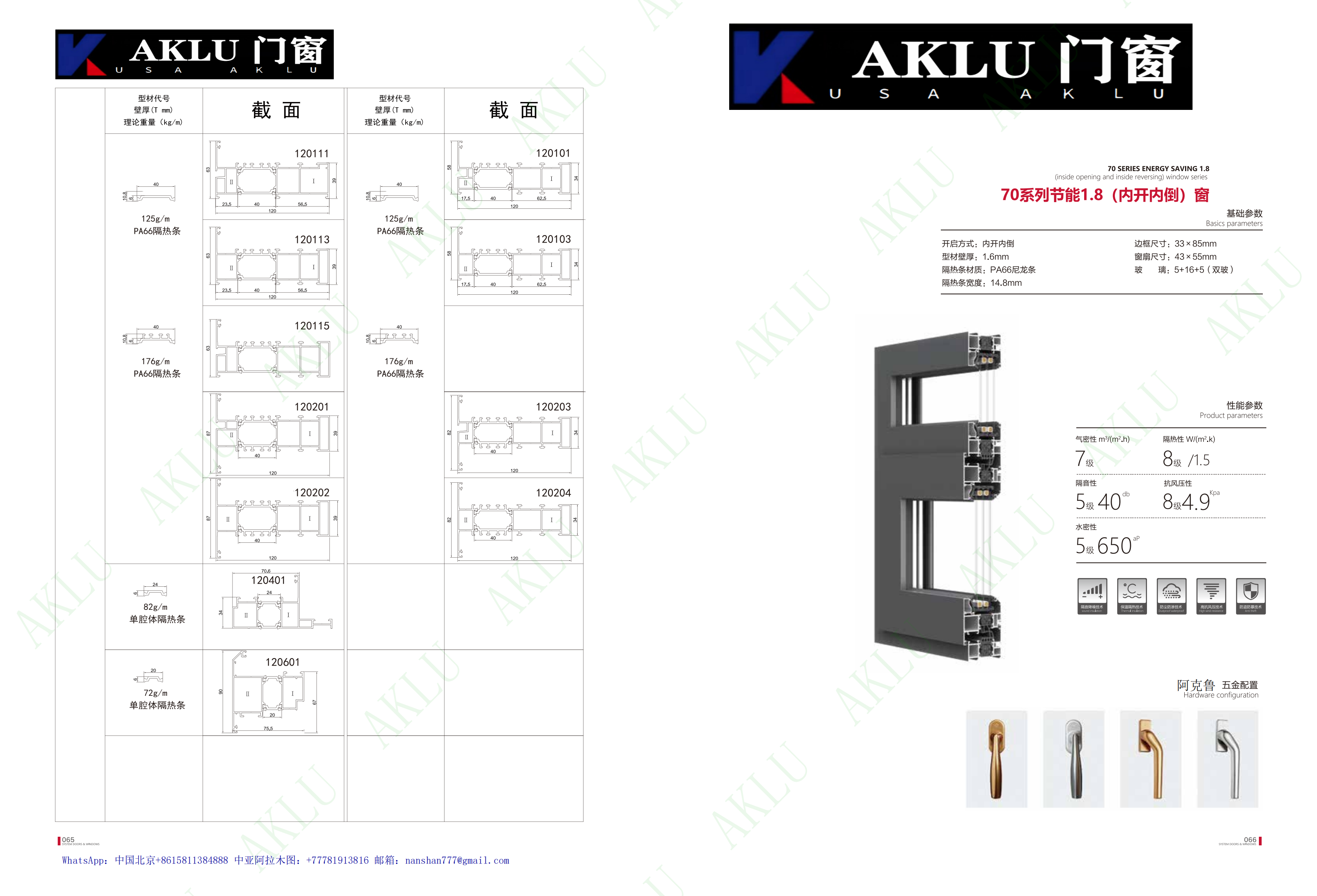

AKLU 70 series energy-saving single system window
AKLU 70 series is an energy-saving single window, without diamond mesh, which enhances the thermal insulation performance. It adopts the pin injection process, and the middle support connection adopts the connector injection process; it enhances the waterproof, airtight, thermal and sound insulation performance. It adopts the invisible drainage groove design to enhance the streamlined visual sense of the window; it can be equipped with light strip decoration. Standard configuration: dust strip, steel sheet, anti-sinking block.
Basic configuration parameters :
Frame size : 70mm × 58mm × 34mm
Center size : 70mm × 82mm × 34mm
Inner opening size: 79.5mm × 78 mm × 55mm
wall thickness: 1.4mm, 1.8 mm
External opening size: 79.5mm × 78 mm × 25mm
Glass notch : 30mm-43mm
Glass specifications: 5mm+16A+5mm, 5mm+12A+5+12A+5
Insulation strip material: PA66 nylon strip
Thermal insulation strip width: 30mm , can be equipped with multiple cavities
Sealing strip material: EPDM rubber strip
Hardware configuration: Standard AKLU European standard notch
Opening method: Inward opening, outward opening, inward opening and tilting, outward opening and hanging
Product performance parameters:
Air tightness: National standard GB/T 31433-2015, test result is level 7
Water tightness: National standard GB/T 31433-2015, test result is level 5
Wind pressure resistance: National standard GB/T 31433-2015, test result is level 5
Thermal insulation: National standard GB/T 31433-2015, test result is level 7
Sound insulation: National standard GB/T 8485-2008, test result is level 5 ≤ 40db
