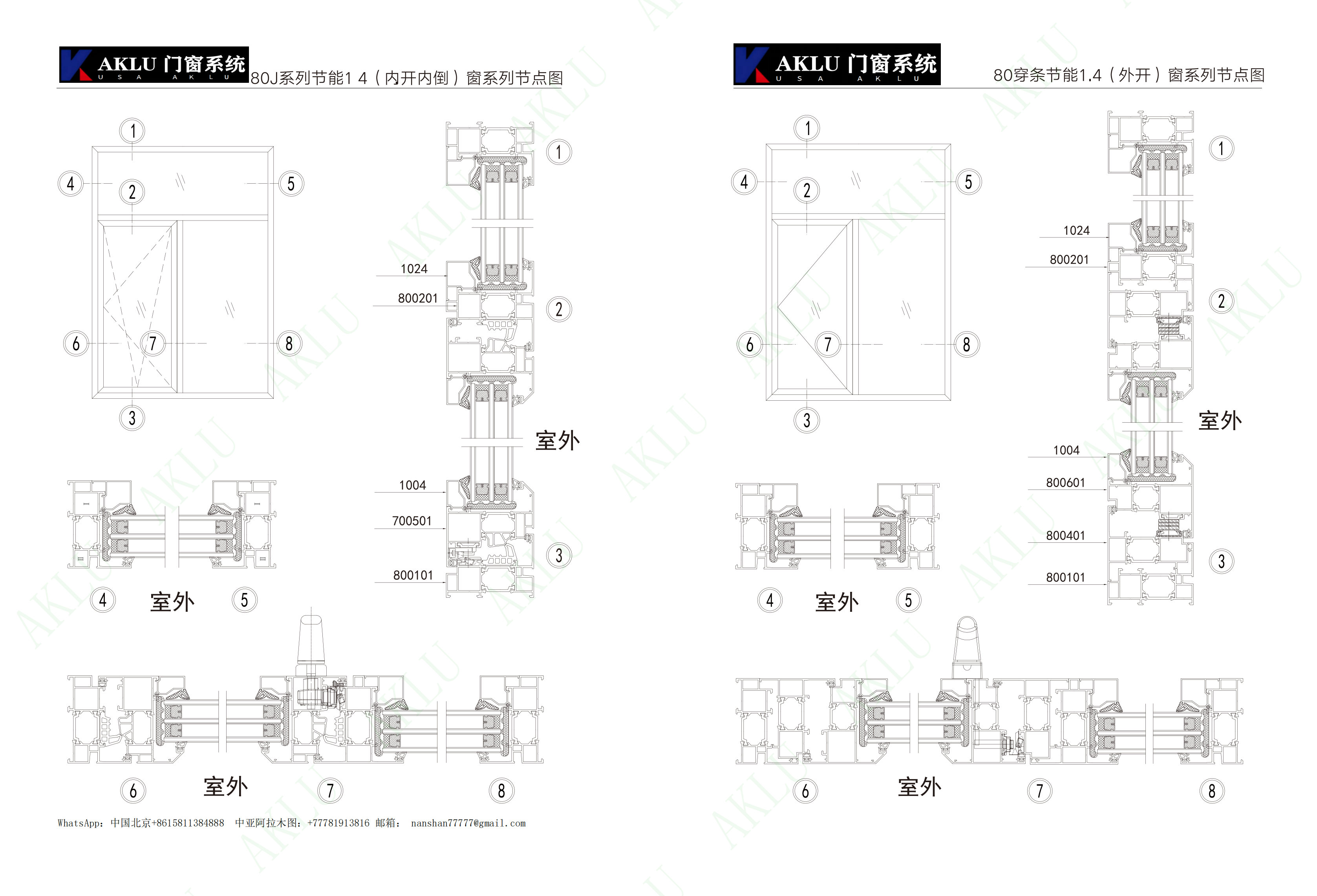

AKLU 80 series energy-saving single system window

  AKLU80 series is an energy-saving single window, without diamond mesh, with a flush design inside and outside to enhance the aesthetic vision. It adopts the pin injection process, and the middle support connection adopts the connector injection process; it enhances the waterproof, airtight, heat insulation and sound insulation performance. It adopts the invisible drainage groove design to enhance the streamlined visual sense of the window; non-invisible drainage grooves can also be selected, and the floor drain drainage process can be equipped with light strip decoration. Standard configuration: dust strips, steel sheets, anti-sinking blocks.

Basic configuration parameters :

Frame size : 80mm × 58mm × 34mm

Center size : 80mm × 82mm × 34mm

Inner opening size: 79.5mm × 78 mm × 55mm

Profile wall thickness : 1.4mm, 1.8mm

Outward opening size: 79.5mm × 78 mm × 33mm

Glass notch : 30mm-43mm optional

Glass assembly specifications: 5mm+16A+5mm, 5mm+12A+5+12A+5

Insulation strip material: PA66 nylon strip

Thermal insulation strip width: 30mm , can be equipped with multiple cavities

Sealing strip material: EPDM rubber strip

Hardware configuration: Standard AKLU European standard notch

Opening method: Inward opening, outward opening, inward opening and tilting, outward opening and hanging

Product performance parameters:

Air tightness: National standard GB/T 31433-2015, test result is level 7

Water tightness: National standard GB/T 31433-2015, test result is level 6

Wind pressure resistance: National standard GB/T 31433-2015, test result is level 8

Thermal insulation: National standard GB/T 31433-2015, test result is level 8

Sound insulation: National standard GB/T 8485-2008, test result is level 5 ≤ 40db
