AKLU 100 series energy-saving steel mesh integrated system window

  AKLU100 series is an energy-saving steel mesh integrated window with a flush design inside and outside to enhance the aesthetic vision. It adopts the pin injection process, and the middle support connection adopts the connector injection process to enhance the waterproof, airtight, heat insulation and sound insulation performance. The invisible drainage groove design is adopted to enhance the streamlined visual sense of the window; light strip decoration is optional. Non-invisible drainage grooves can also be selected, and the floor drain drainage process is standardly equipped with: dust strips, steel sheets, and anti-sinking blocks.

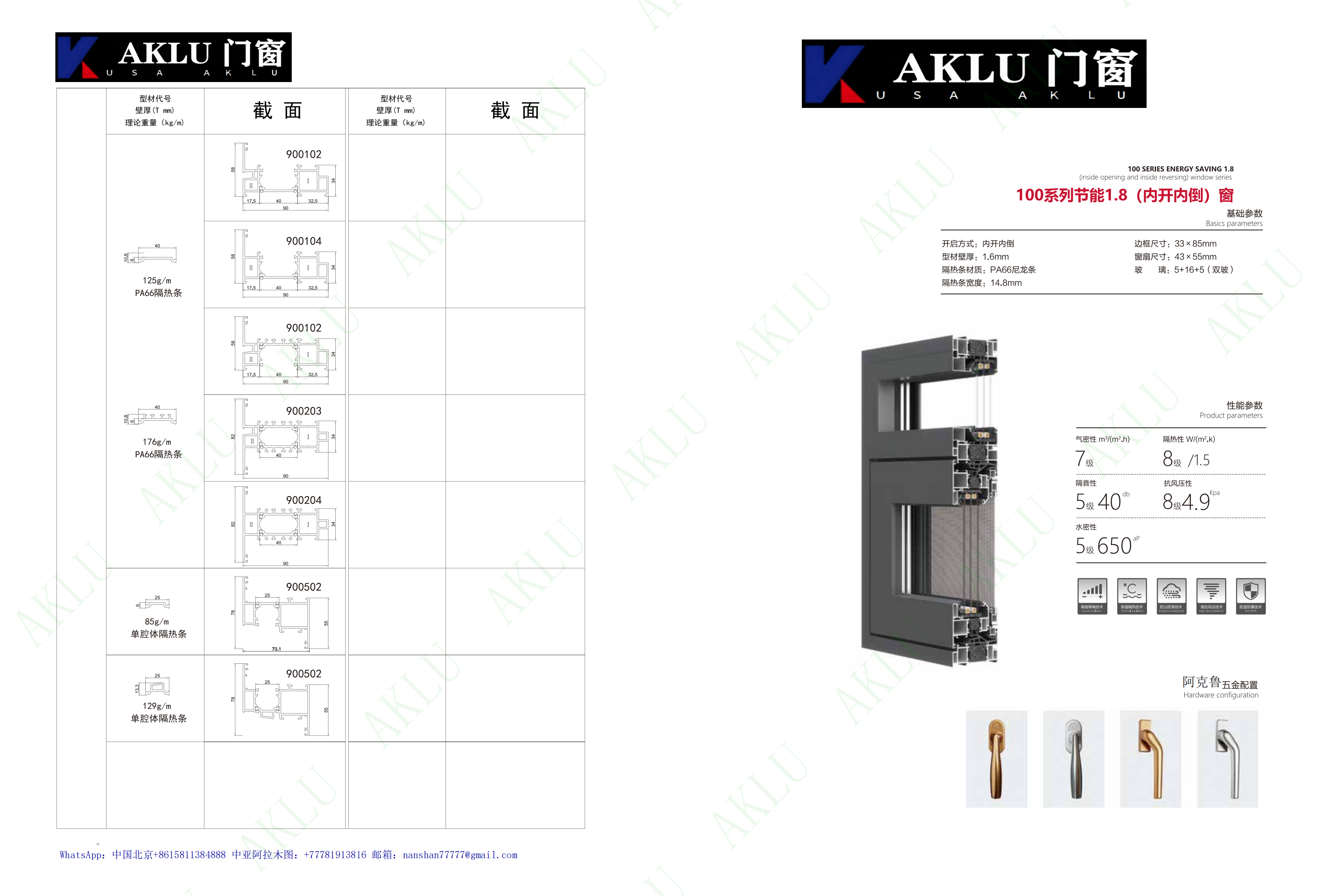

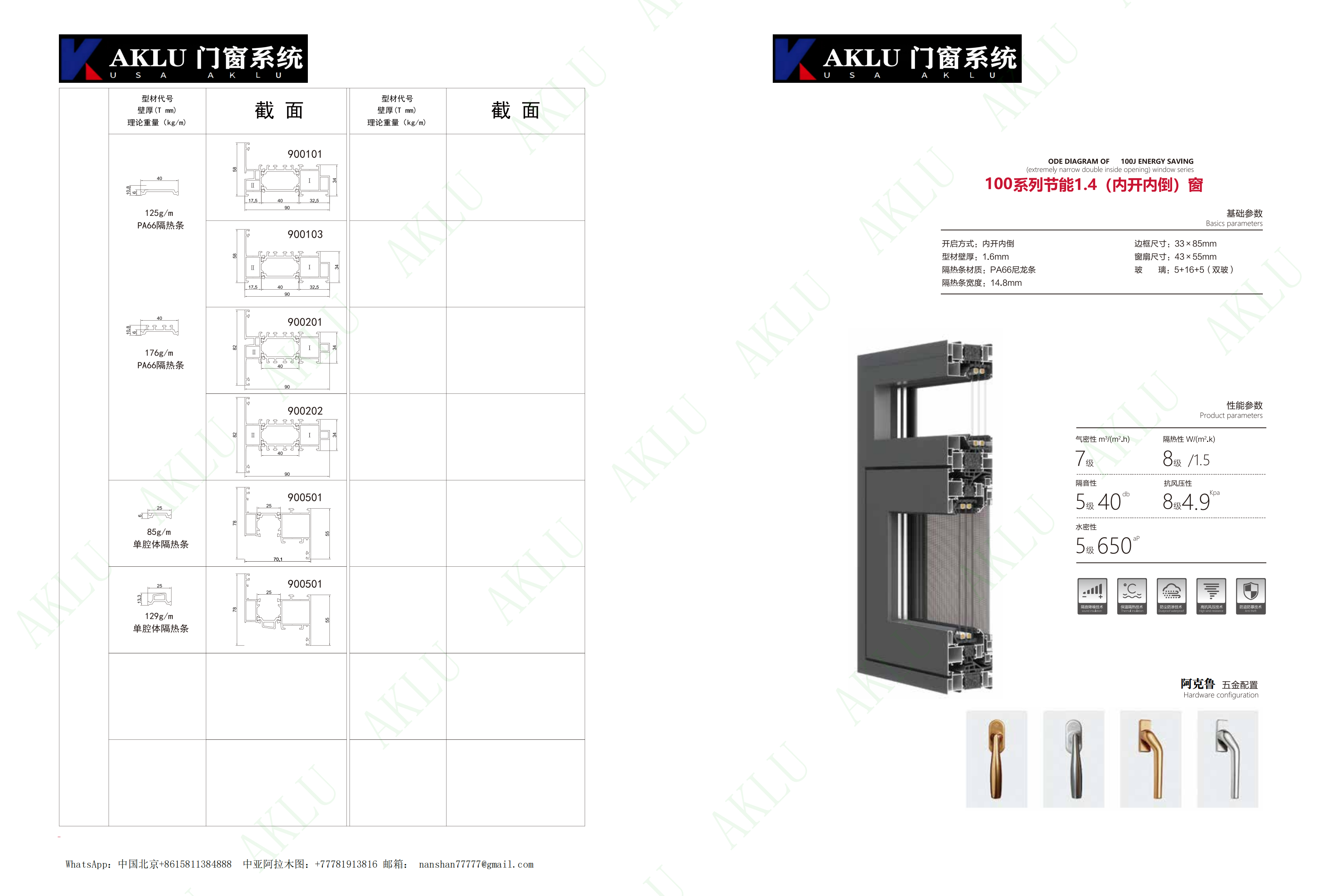

Basic configuration parameters :

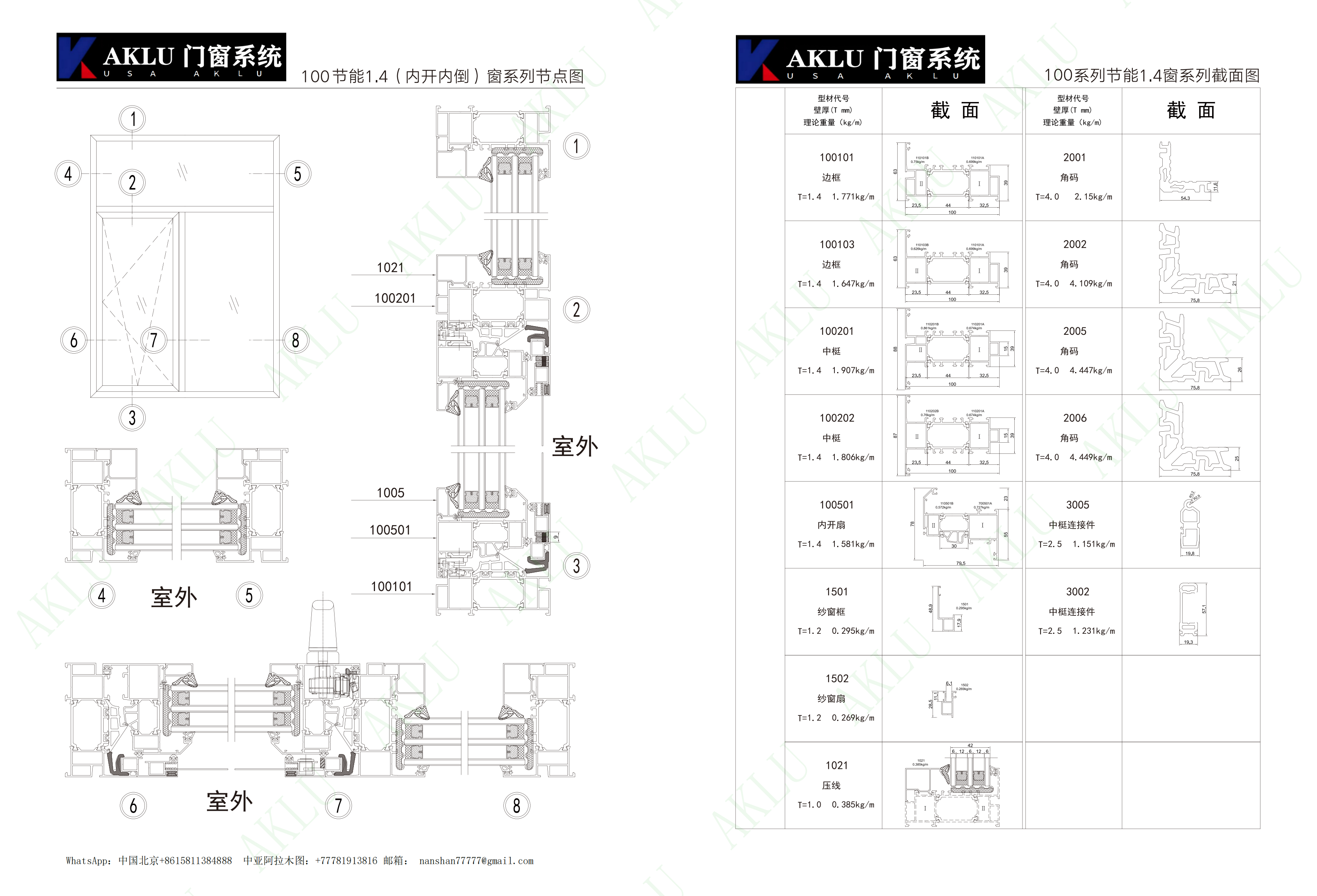

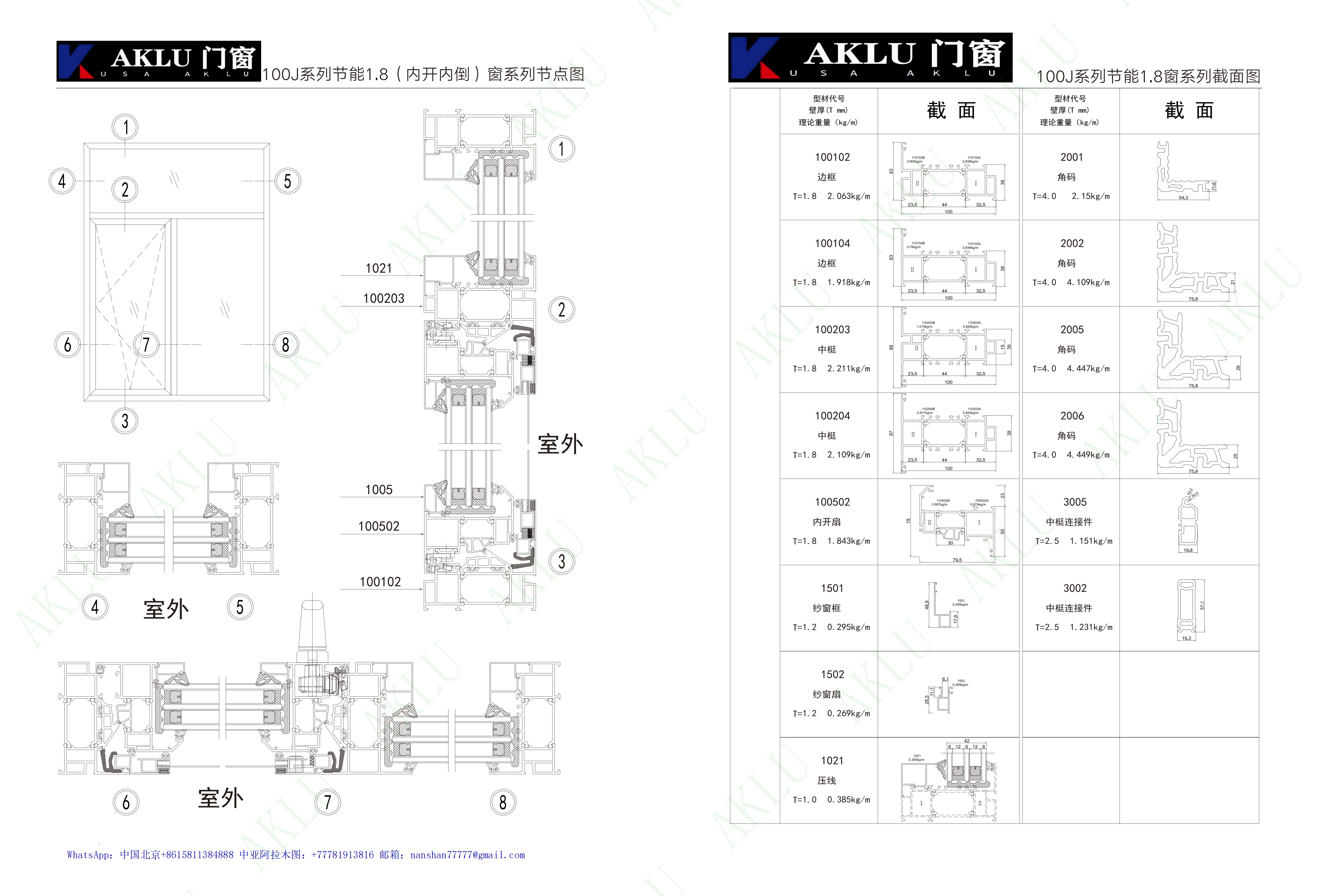

Frame size : 100mm × 88mm × 39mm

Center size : 100mm × 88mm × 39mm

Inner opening size: 79.5mm × 78 mm × 55mm

Profile wall thickness : 1.4mm, 1.8mm

Outward opening size: No outward opening design

Glass notch : 30mm-43mm optional

Glass assembly specifications: 5mm+16A+5mm, 5mm+12A+5+12A+5

Insulation strip material: PA66 nylon strip

Thermal insulation strip width: 44mm , can be equipped with multiple cavities

Sealing strip material: EPDM rubber strip

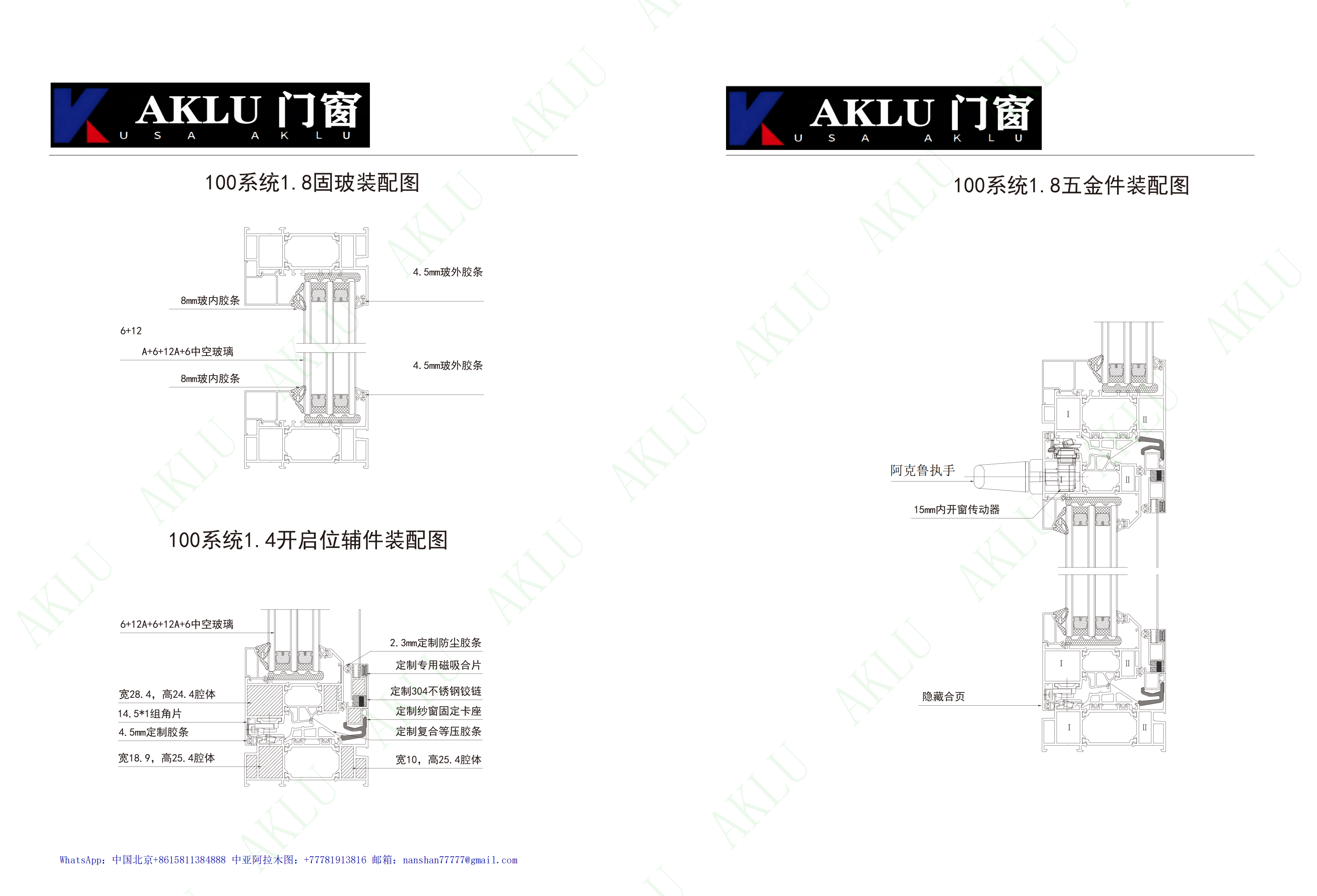

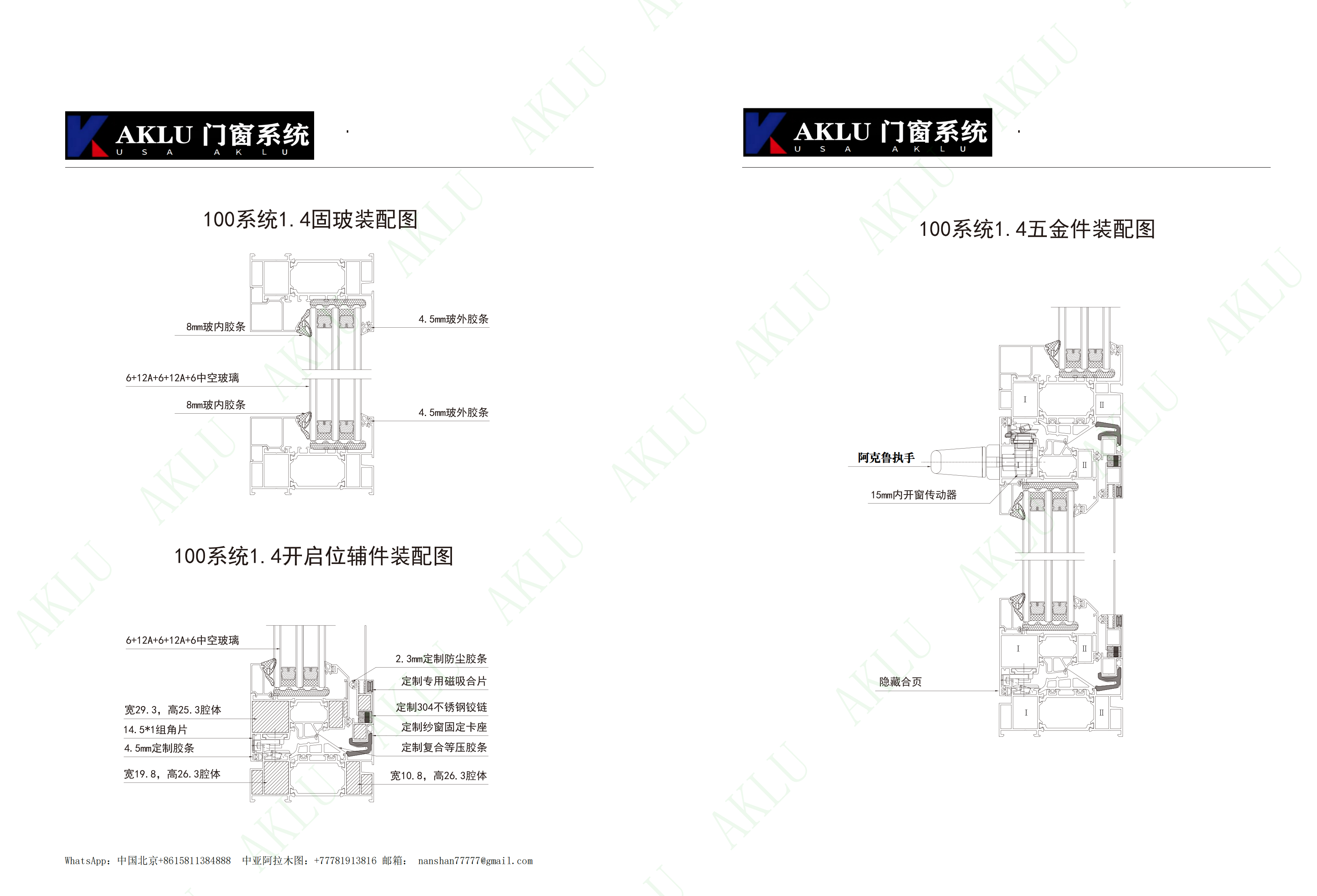

Hardware configuration: Standard AKLU European standard notch

Opening method: Inward opening, inward opening and inward tilting

Product performance parameters:

Air tightness: National standard GB/T 31433-2015, test result is level 7

Water tightness: National standard GB/T 31433-2015, test result is level 6

Wind pressure resistance: National standard GB/T 31433-2015, test result is level 9

Thermal insulation: National standard GB/T 31433-2015, test result is level 9

Sound insulation: National standard GB/T 8485-2008, test result is level 4 ≤ 30db
